Product Parameters
Note: The table is for reference dimensions of standard models and can be customized by customers; the company reserves the right to change the design.

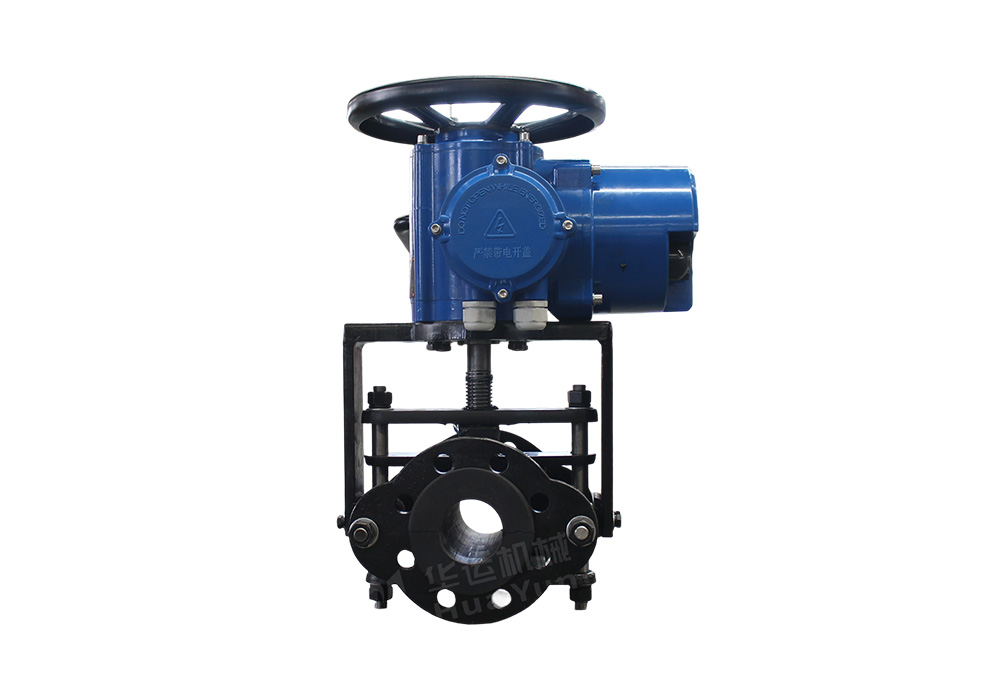

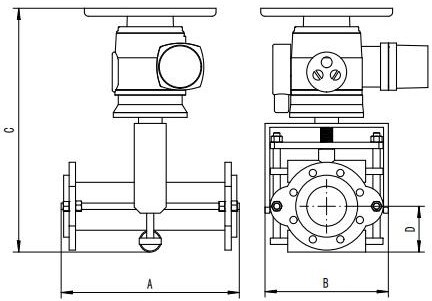

| Huayun HRJ（simple open body） pinch valve electric type specification table | ||||||||
Product Model |
Nominal diameter （mm） |
Nominal pressure （MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRJ25-EK |
DN25 |
0-1.6 |
-40℃~+100℃ |
145 |
220 |
515 |
40 |
Electric switch type |
HRJ32-ET |
DN32 |
0-1.6 |
-40℃~+100℃ |
160 |
240 |
530 |
55 |
Electric adjustment type |
HRJ32-EK |
DN32 |
0-1.6 |
-40℃~+100℃ |
160 |
240 |
530 |
55 |
Electric switch type |
HRJ32-ET |
DN32 |
0-1.6 |
-40℃~+100℃ |
160 |
240 |
530 |
55 |
Electric adjustment type |
HRJ50-EK |
DN50 |
0-1.6 |
-40℃~+100℃ |
180 |
250 |
555 |
70 |
Electric switch type |
HRJ50-ET |
DN50 |
0-1.6 |
-40℃~+100℃ |
180 |
250 |
555 |
70 |
Electric adjustment type |
HRJ65-EK |
DN65 |
0-1.6 |
-40℃~+100℃ |
250 |
275 |
575 |
85 |
Electric switch type |
HRJ65-ET |
DN65 |
0-1.6 |
-40℃~+100℃ |
250 |
275 |
575 |
85 |
Electric adjustment type |
HRJ80-EK |
DN80 |
0-1.6 |
-40℃~+100℃ |
285 |
290 |
590 |
100 |
Electric switch type |
HRJ80-ET |
DN80 |
0-1.6 |
-40℃~+100℃ |
285 |
290 |
590 |
100 |
Electric adjustment type |
HRJ100-EK |
DN100 |
0-1.6 |
-40℃~+100℃ |
355 |
310 |
612 |
115 |
Electric switch type |
HRJ100-ET |
DN100 |
0-1.6 |
-40℃~+100℃ |
355 |
310 |
612 |
115 |
Electric adjustment type |
HRJ125-EK |
DN125 |
0-1.6 |
-40℃~+100℃ |
450 |
340 |
645 |
130 |
Electric switch type |
HRJ125-ET |
DN125 |
0-1.6 |
-40℃~+100℃ |
450 |
340 |
645 |
130 |
Electric adjustment type |
HRJ150-EK |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
390 |
680 |
155 |
Electric switch type |
HRJ150-ET |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
390 |
680 |
155 |
Electric adjustment type |
HRJ200-EK |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
440 |
740 |
205 |
Electric switch type |
HRJ200-ET |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
440 |
740 |
205 |
Electric adjustment type |
HRJ250-EK |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
490 |
800 |
255 |
Electric switch type |
HRJ250-ET |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
490 |
800 |
255 |
Electric adjustment type |
HRJ300-EK |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
540 |
880 |
305 |
Electric switch type |
HRJ300-ET |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
540 |
880 |
305 |
Electric adjustment type |
HRJ350-EK |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
580 |
950 |
410 |
Electric switch type |
HRJ350-ET |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
580 |
950 |
410 |
Electric adjustment type |
HRJ400-EK |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
630 |
1040 |
460 |
Electric switch type |
HRJ400-ET |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
630 |
1040 |
460 |
Electric adjustment type |
HRJ450-EK |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
680 |
1100 |
520 |
Electric switch type |
HRJ450-ET |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
680 |
1100 |
520 |
Electric adjustment type |
HRJ500-EK |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
730 |
1210 |
580 |
Electric switch type |
HRJ500-ET |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
730 |
1210 |
580 |
Electric adjustment type |
HRJ600-EK |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
830 |
1300 |
690 |
Electric switch type |
HRJ600-ET |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
830 |
1300 |
690 |
Electric adjustment type |
HRJ700-EK |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
930 |
1400 |
790 |
Electric switch type |
HRJ700-ET |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
930 |
1400 |
790 |
Electric adjustment type |
HRJ800-EK |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1030 |
1500 |
890 |
Electric switch type |
HRJ800-ET |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1030 |
1500 |
890 |
Electric adjustment type |
