Product Parameters
Huayun HRJ pinch valve manual handwheel type
Note: The table is for reference dimensions of standard models and can be customized by customers; the company reserves the right to change the design.
| Huayun HRJ（simple open body）pinch valve manual gearbox type specification table | ||||||||
Product Model |
Nominal diameter （mm） |
Nominal pressure （MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRJ25-M |
DN25 |
0-1.6 |
-40℃~+100℃ |
145 |
210 |
311 |
40 |
Manual Handwheel |
HRJ32-M |
DN32 |
0-1.6 |
-40℃~+100℃ |
160 |
225 |
326 |
55 |
Manual Handwheel |
HRJ50-M |
DN50 |
0-1.6 |
-40℃~+100℃ |
180 |
240 |
340 |
70 |
Manual Handwheel |
HRJ65-M |
DN65 |
0-1.6 |
-40℃~+100℃ |
250 |
255 |
356 |
85 |
Manual Handwheel |
HRJ80-M |
DN80 |
0-1.6 |
-40℃~+100℃ |
285 |
270 |
370 |
100 |
Manual Handwheel |
HRJ100-M |
DN100 |
0-1.6 |
-40℃~+100℃ |
355 |
285 |
386 |
115 |
Manual Handwheel |
HRJ125-M |
DN125 |
0-1.6 |
-40℃~+100℃ |
450 |
340 |
446 |
130 |
Manual Handwheel |
HRJ150-M |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
400 |
500 |
155 |
Manual Handwheel |
HRJ200-M |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
450 |
550 |
205 |
Manual Handwheel |
HRJ250-M |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
500 |
600 |
255 |
Manual Handwheel |
HRJ300-M |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
550 |
650 |
305 |
Manual Handwheel |

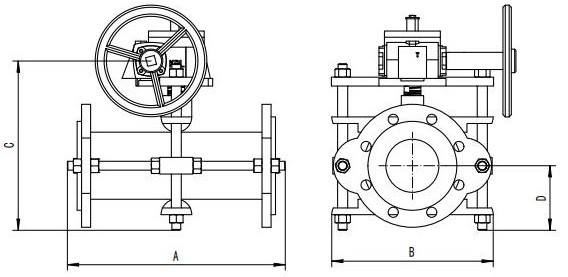

| Huayun HRJ(simple open body)pinch valve manual gearbox type | ||||||||
Product Model |
Nominal diameter （mm） |
Nominal pressure （MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRJ125-MG |
DN125 |
0-1.6 |
-40℃~+100℃ |
450 |
340 |
475 |
130 |
Manual Handwheel with gearbox |
HRJ150-MG |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
400 |
500 |
155 |
Manual Handwheel with gearbox |
HRJ200-MG |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
450 |
640 |
205 |
Manual Handwheel with gearbox |
HRJ250-MG |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
500 |
700 |
255 |
Manual Handwheel with gearbox |
HRJ300-MG |
DN300 |
0-1.6 |
-40℃~+100℃ |
680 |
540 |
750 |
305 |
Manual Handwheel with gearbox |
HRJ350-MG |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
580 |
850 |
410 |
Manual Handwheel with gearbox |
HRJ400-MG |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
630 |
940 |
460 |
Manual Handwheel with gearbox |
HRJ450-MG |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
680 |
1000 |
520 |
Manual Handwheel with gearbox |
HRJ500-MG |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
730 |
1090 |
580 |
Manual Handwheel with gearbox |
HRJ600-MG |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
830 |
1100 |
690 |
Manual Handwheel with gearbox |
HRJ700-MG |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
930 |
1200 |
790 |
Manual Handwheel with gearbox |
HRJ800-MG |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1030 |
1300 |
890 |
Manual Handwheel with gearbox |
