Product classification
Product Parameters
Note: The table is a standard model and can be customized

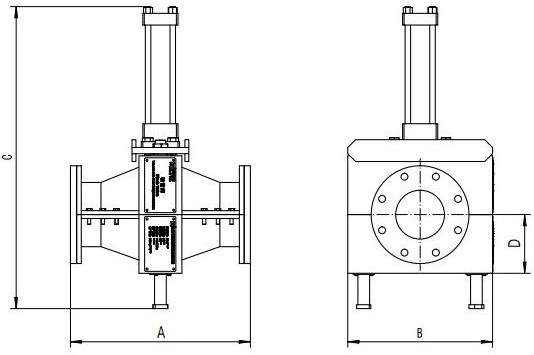

Huayun HRQ（light）pinch valve Hydraulic type specification table |
||||||||
Product Model |
Nominal diameter（mm） |
Nominal pressure（MPa） |
Temperature range（℃） |
A（mm） |
B（mm） |
C（mm） |
D（mm） |
Drive mode |
HRQ25-Y |
DN25 |
0-1.6 |
-40℃~+100℃ |
190 |
185 |
430 |
61 |
Hydraulic |
HRQ32-Y |
DN32 |
0-1.6 |
-40℃~+100℃ |
210 |
195 |
450 |
70 |
Hydraulic |
HRQ50-Y |
DN50 |
0-1.6 |
-40℃~+100℃ |
212 |
210 |
480 |
95 |
Hydraulic |
HRQ65-Y |
DN65 |
0-1.6 |
-40℃~+100℃ |
300 |
275 |
550 |
115 |
Hydraulic |
HRQ80-Y |
DN80 |
0-1.6 |
-40℃~+100℃ |
350 |
290 |
600 |
125 |
Hydraulic |
HRQ100-Y |
DN100 |
0-1.6 |
-40℃~+100℃ |
434 |
327 |
655 |
135 |
Hydraulic |
HRQ125-Y |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
768 |
150 |
Hydraulic |
HRQ150-Y |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
830 |
163 |
Hydraulic |
HRQ200-Y |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
1036 |
200 |
Hydraulic |
HRQ250-Y |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1180 |
225 |
Hydraulic |
HRQ300-Y |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1240 |
278 |
Hydraulic |
HRQ350-Y |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
1040 |
1300 |
270 |
Hydraulic |
HRQ400-Y |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
1090 |
1350 |
320 |
Hydraulic |
HRQ450-Y |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
1140 |
1400 |
370 |
Hydraulic |
HRQ500-Y |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
1190 |
1460 |
420 |
Hydraulic |
HRQ600-Y |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
1350 |
1580 |
490 |
Hydraulic |
HRQ700-Y |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
1490 |
1690 |
540 |
Hydraulic |
HRQ800-Y |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1610 |
1790 |
590 |
Hydraulic |
