Hydraulic type_Z-type pinch valve_Pinch valve

Product classification

Product Parameters

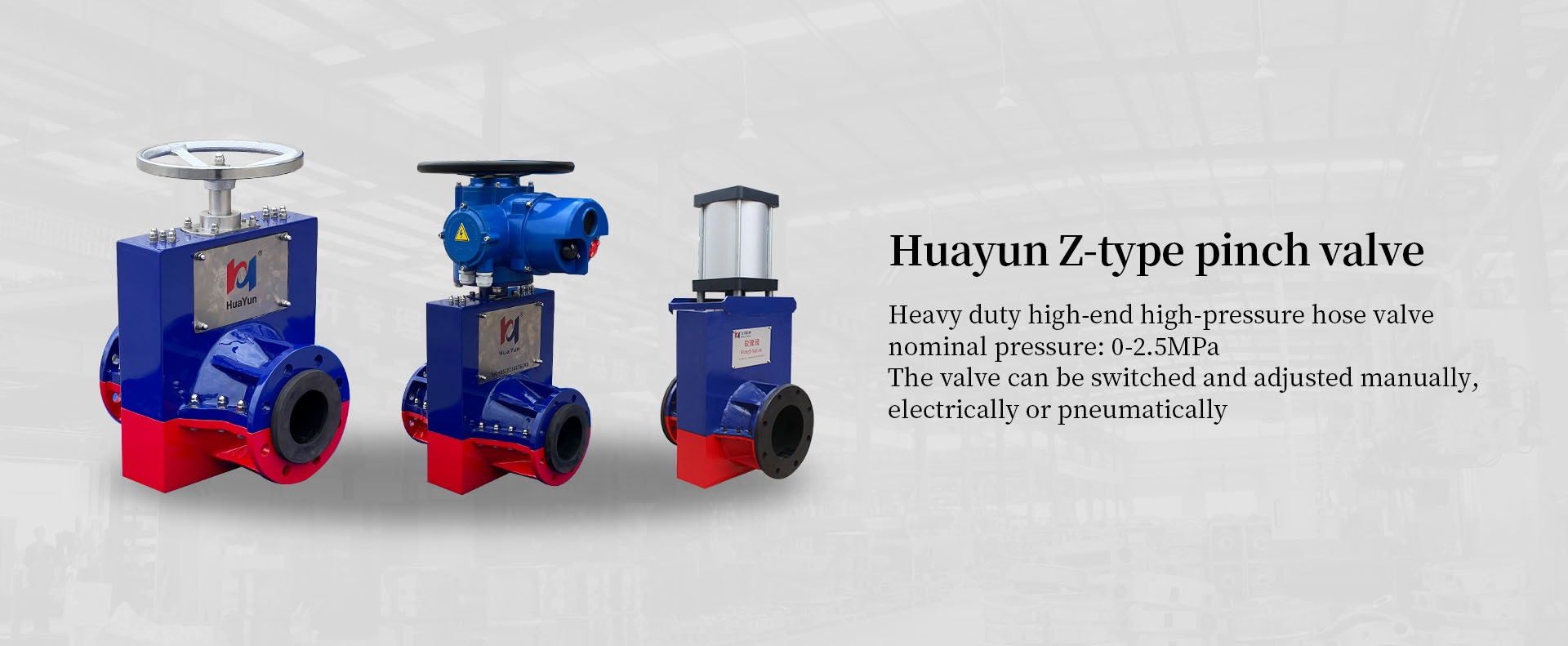

Z type pinch valve Hydraulic type

Note: The table is a standard model and can be customized

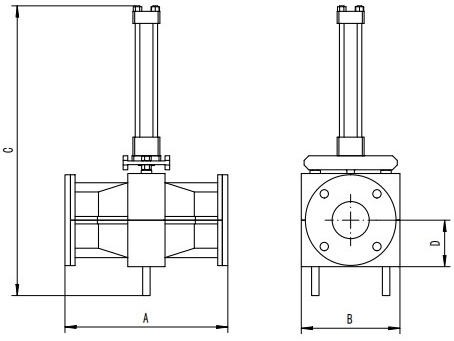

Huayun HRZ（Heavy）pinch valve Hydraulic type specification table
Product Model	Nominal diameter（mm）	Nominal pressure（MPa）	Temperature range（℃）	A（mm）	B（mm）	C（mm）	D（mm）	Drive mode
HRZ25-Y	DN25	0-2.5	-40℃~+100℃	190	200	450	75	Hydraulic
HRZ32-Y	DN32	0-2.5	-40℃~+100℃	210	210	520	85	Hydraulic
HRZ50-Y	DN50	0-2.5	-40℃~+100℃	212	230	600	95	Hydraulic
HRZ65-Y	DN65	0-2.5	-40℃~+100℃	300	280	670	120	Hydraulic
HRZ80-Y	DN80	0-2.5	-40℃~+100℃	350	310	710	130	Hydraulic
HRZ100-Y	DN100	0-2.5	-40℃~+100℃	434	340	780	145	Hydraulic
HRZ125-Y	DN125	0-2.5	-40℃~+100℃	460	390	830	160	Hydraulic
HRZ150-Y	DN150	0-2.5	-40℃~+100℃	375	430	910	180	Hydraulic
HRZ200-Y	DN200	0-2.5	-40℃~+100℃	505	515	1180	210	Hydraulic
HRZ250-Y	DN250	0-2.5	-40℃~+100℃	640	581	1260	234	Hydraulic
HRZ300-Y	DN300	0-2.5	-40℃~+100℃	750	655	1290	270	Hydraulic
HRZ350-Y	DN350	0-2.5	-40℃~+100℃	890	1090	1360	300	Hydraulic
HRZ400-Y	DN400	0-2.5	-40℃~+100℃	1090	1110	1410	340	Hydraulic
HRZ450-Y	DN450	0-2.5	-40℃~+100℃	1120	1160	1460	390	Hydraulic
HRZ500-Y	DN500	0-2.5	-40℃~+100℃	1240	1240	1510	440	Hydraulic
HRZ600-Y	DN600	0-2.5	-40℃~+100℃	1450	1390	1620	510	Hydraulic
HRZ700-Y	DN700	0-2.5	-40℃~+100℃	1660	1510	1710	560	Hydraulic
HRZ800-Y	DN800	0-2.5	-40℃~+100℃	1880	1680	1810	610	Hydraulic
