Product Parameters
Note: The table is for reference dimensions of standard models and can be customized by customers; the company reserves the right to change the design.

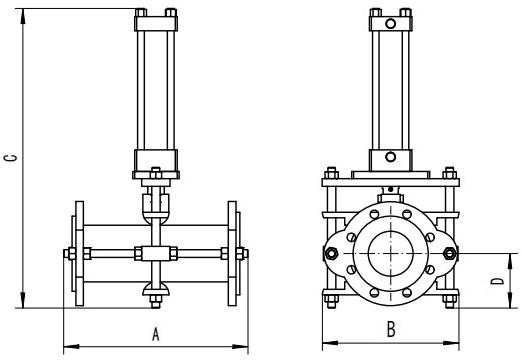

| Huayun HRJ（simple open body）pinch valve hydraulic type specification table | ||||||||
Product Model |
Nominal diameter （mm） |
Nominal pressure （MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRJ25-Y |
DN25 |
0-1.6 |
-40℃~+100℃ |
145 |
210 |
455 |
40 |
Hydraulic |
HRJ32-Y |
DN32 |
0-1.6 |
-40℃~+100℃ |
160 |
225 |
470 |
55 |
Hydraulic |
HRJ50-Y |
DN50 |
0-1.6 |
-40℃~+100℃ |
180 |
240 |
485 |
70 |
Hydraulic |
HRJ65-Y |
DN65 |
0-1.6 |
-40℃~+100℃ |
250 |
255 |
500 |
85 |
Hydraulic |
HRJ80-Y |
DN80 |
0-1.6 |
-40℃~+100℃ |
285 |
270 |
525 |
100 |
Hydraulic |
HRJ100-Y |
DN100 |
0-1.6 |
-40℃~+100℃ |
355 |
285 |
560 |
115 |
Hydraulic |
HRJ125-Y |
DN125 |
0-1.6 |
-40℃~+100℃ |
450 |
340 |
635 |
130 |
Hydraulic |
HRJ150-Y |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
390 |
690 |
155 |
Hydraulic |
HRJ200-Y |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
440 |
750 |
205 |
Hydraulic |
HRJ250-Y |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
490 |
800 |
255 |
Hydraulic |
HRJ300-Y |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
540 |
860 |
305 |
Hydraulic |
HRJ350-Y |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
580 |
910 |
410 |
Hydraulic |
HRJ400-Y |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
630 |
970 |
460 |
Hydraulic |
HRJ450-Y |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
680 |
1030 |
520 |
Hydraulic |
HRJ500-Y |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
730 |
1100 |
580 |
Hydraulic |
HRJ600-Y |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
830 |
1200 |
690 |
Hydraulic |
HRJ700-Y |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
930 |
1300 |
790 |
Hydraulic |
HRJ800-Y |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1030 |
1400 |
890 |
Hydraulic |
